| 起源の場所: | エナン |
| ブランド名: | Sanwu |
| 証明: | ISO CCC |
| モデル番号: | ACSR |
| 最小注文数量: | 1000m |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 新しい木製のドラム,ロール,円,または顧客の要求に応じて |
| 受渡し時間: | 1-15days |
| 支払条件: | L/C、T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 1日あたりの200トン |
| 名前: | アルミニウム コンダクターの鋼鉄は補強した | 電圧: | 低/中/高電圧 |
|---|---|---|---|
| アプリケーション: | オーバーヘッド | 寸法: | 0.5--1000mm2 |
| タイプ: | MV/LV | 寿命: | 30年 |
| ハイライト: | thermal resistant aluminum alloy conductor,steel reinforced conductor cable,aluminium conductor steel reinforced cable |
||

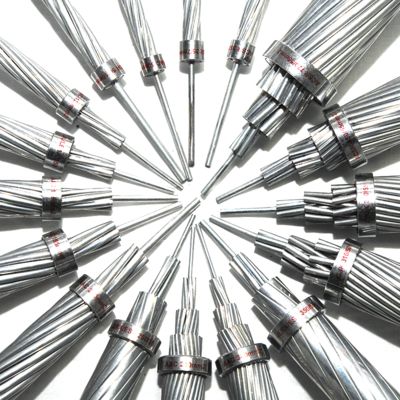

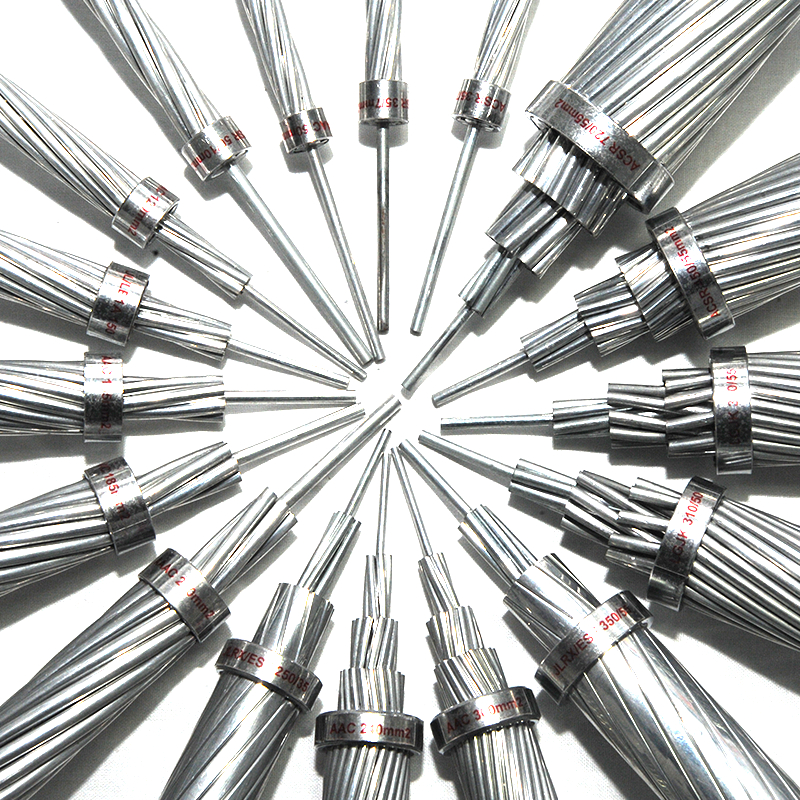

All Aluminium Conductors Thermal Resistant Aluminum-Alloy Conductor Steel Reinforced Conductor Cable

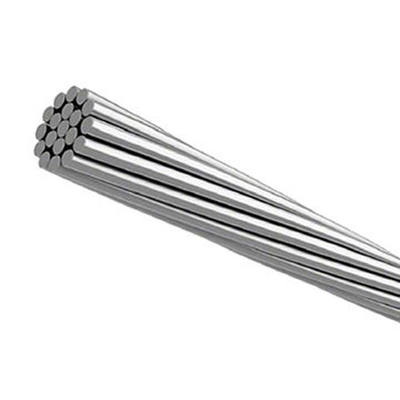

Aluminium Conductor Steel Reinforced(ACSR) It is an overhead transmission wire composed of twisted aluminum wires on the outer layer of a steel core, and belongs to the category of power transmission materials. The steel core provides mechanical strength support, while the aluminum layer is responsible for conductivity, utilizing the lightweight and high conductivity of aluminum combined with the tensile properties of steel to achieve efficiency optimization. This wire reduces the impact of low conductivity of the steel core on transmission efficiency through skin effect, and is suitable for large-span complex terrain installation. It has the advantages of simple structure, low installation cost, and large transmission capacity.
ACSR Conductor Standards
* ASTM B-232 * BS 215
* CSAC 61089 * AS/NZS 3607
* DIN 48204 * IEC 61089
* GB/T 1179 * JIS C3110
Specifications
| Code | Size (AWG/MCM) | Number of Strands(mm) | Weight(kg/km) | Rated Strength(kg) |
| Rose | 4 | 7*1.96 | 58.3 | 399 |
| Iris | 2 | 7*2.47 | 92.7 | 611 |
| Pansy | 1 | 7*2.78 | 117 | 740 |
| Aster | 2/0 | 7*3.5 | 186 | 1375 |
Technical Characteristics

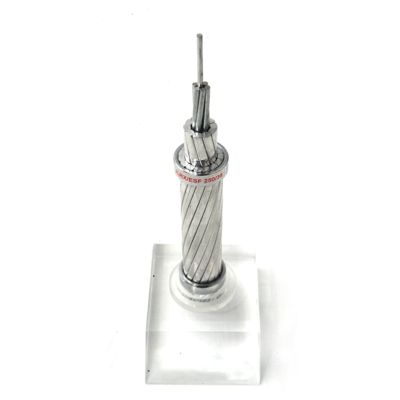

ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor,around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentricstranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible. If you haveany suggestions or opinions about our products, please leave a message, and we will immediately answer your questions.
Applications
Conductor(AAC and ACSR) have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.
Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.
According to customers request.
More Products:
Customers Visit
At our factory, we take pride in fostering strong relationships with our international clients. Foreign customers visited our facility to gain firsthand experience of our production processes and quality standards. During their visit, they were impressed by our state-of-the-art manufacturing capabilities, commitment to quality, and the dedication of our skilled workforce.
All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.
