| 起源の場所: | エナン |
| ブランド名: | Sanwu |
| 証明: | ISO CCC |
| モデル番号: | ACSR |
| 最小注文数量: | 1000m |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 新しい木製のドラム,ロール,円,または顧客の要求に応じて |
| 受渡し時間: | 1-15days |
| 支払条件: | L/C、T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 1日あたりの200トン |
| 名前: | アルミニウム コンダクターの鋼鉄は補強した | 電圧: | 低/中/高電圧 |
|---|---|---|---|
| アプリケーション: | オーバーヘッド | 寸法: | 0.5--1000mm2 |
| タイプ: | MV/LV | 寿命: | 30年 |
| ハイライト: | Aluminium Conductor Steel Reinforced ACSR cable,ACSR cable for transmission lines,Good conductivity aluminium conductor cable |
||

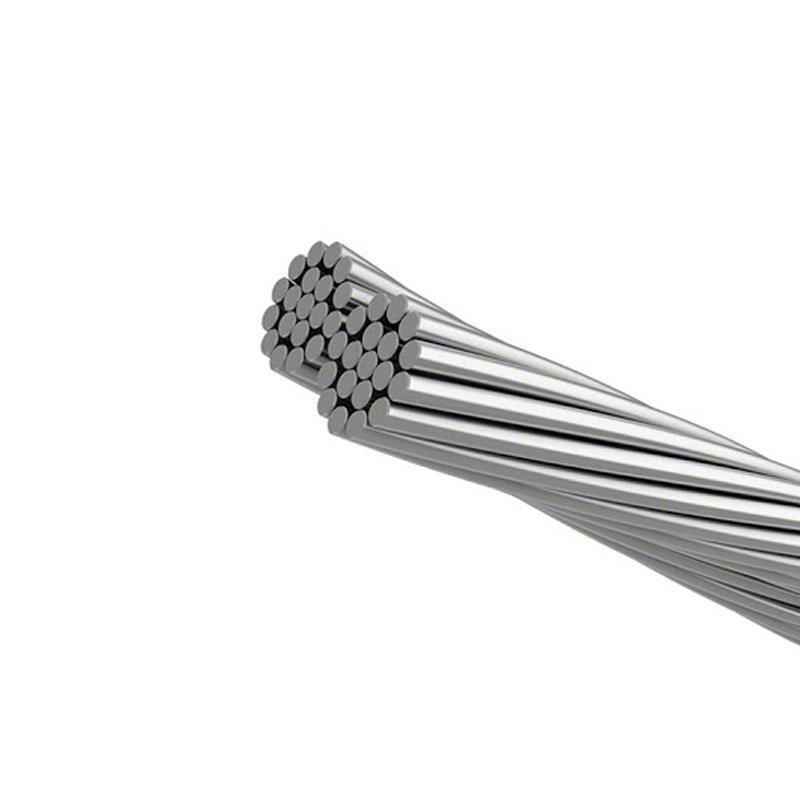

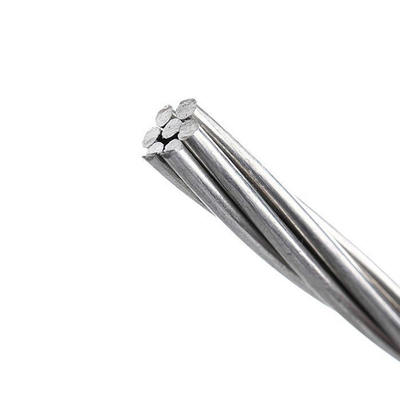

Good Electrical Conductivity Aluminium Conductor Steel Reinforced ACSR JKLYJ For Electricity And Transmission Lines
Aluminium Conductor Steel Reinforced(ACSR), It has a steel "core" inside and is wrapped around the steel core with aluminum wire twisted together on the outside; Steel core mainly serves to increase strength, while aluminum stranded wire mainly serves to transmit electrical energy. ACSR has the characteristics of simple structure, easy installation and maintenance, low line cost, large transmission capacity, and is conducive to laying in special geographical conditions such as crossing rivers and valleys. It has good conductivity and sufficient mechanical strength, high tensile strength, and the tower distance can be enlarged. Therefore, it is widely used in overhead transmission and distribution lines of various voltage levels.
ACSR Conductor Standards
* ASTM B-232 * BS 215
* CSAC 61089 * AS/NZS 3607
* DIN 48204 * IEC 61089
* GB/T 1179 * JIS C3110
Specifications
| Code | Size (AWG/MCM) | Number of Strands(mm) | Weight(kg/km) | Rated Strength(kg) |
| Rose | 4 | 7*1.96 | 58.3 | 399 |
| Iris | 2 | 7*2.47 | 92.7 | 611 |
| Pansy | 1 | 7*2.78 | 117 | 740 |
| Aster | 2/0 | 7*3.5 | 186 | 1375 |
Technical Characteristics

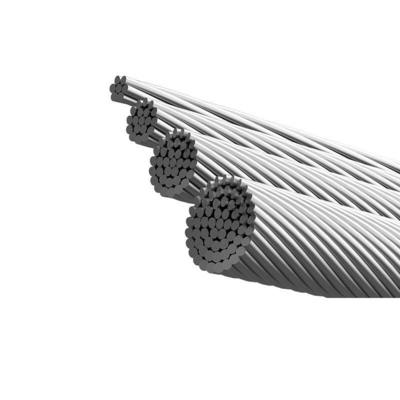

ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor,around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentricstranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible. If you haveany suggestions or opinions about our products, please leave a message, and we will immediately answer your questions.
Applications
Conductor(AAC and ACSR) have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.
Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.
According to customers request.
More Products:
Customers Visit
At our factory, we take pride in fostering strong relationships with our international clients. Foreign customers visited our facility to gain firsthand experience of our production processes and quality standards. During their visit, they were impressed by our state-of-the-art manufacturing capabilities, commitment to quality, and the dedication of our skilled workforce.
All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.
