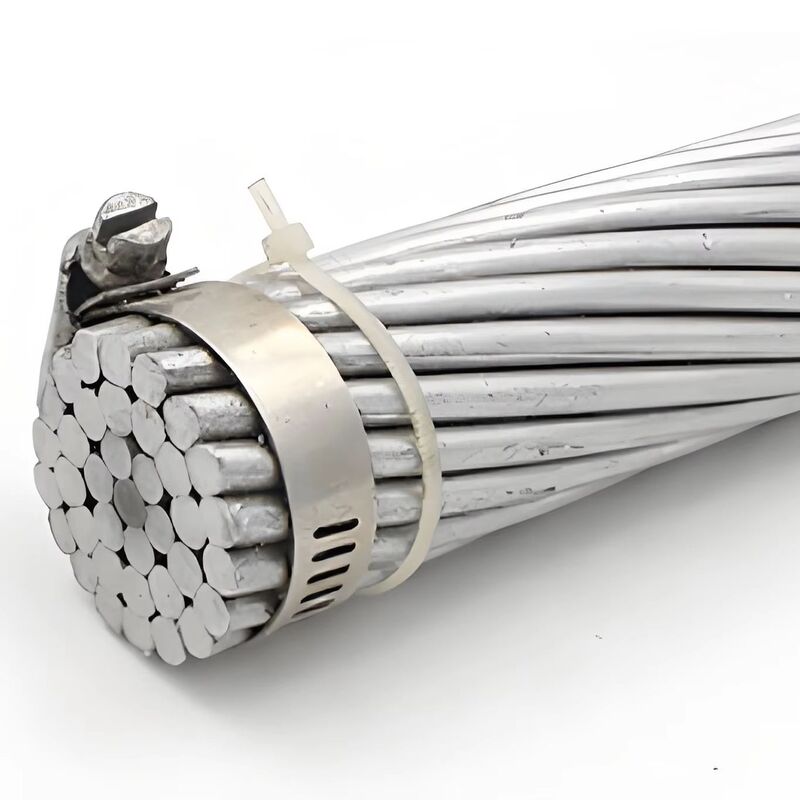

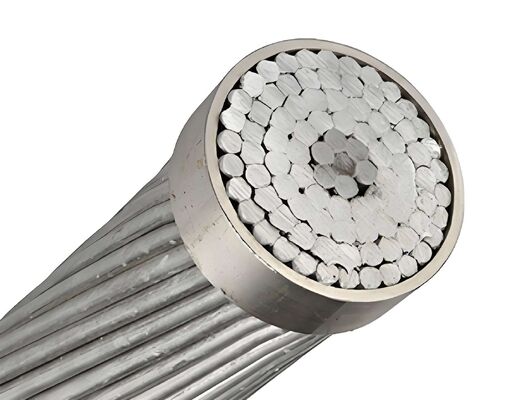

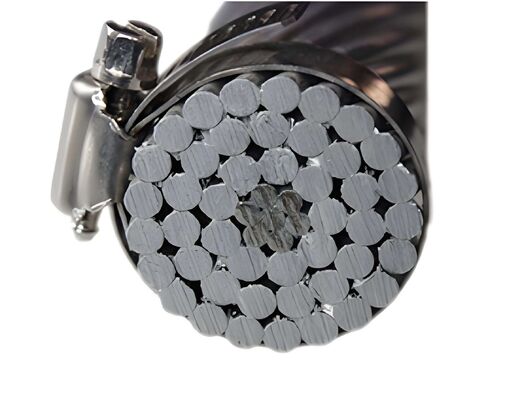

Aluminum Conductor ACSR AW High Voltage 20kV Power Cables 16-800mm2 Bare Insulation Material for Overhead Application

Aluminum Conductor ACSR AW High Voltage 20kV Power Cables 16-800mm2 Bare Insulation Material for Overhead Application

Specafication:

Standard:

ACSR Bare conductor meets or exceeds the following specifications:

• IEC 61089 Round wire concentric lay overhead electrical stranded conductors

• AS 3607 Conductors - Bare overhead - Aluminium and aluminium alloy-Steel reinforced

• ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced

• BS EN 50182 Conductors for overhead lines — Round wire concentric lay stranded conductors

• GB 1179 Round wire concentric lay overhead electrical stranded conductors

Note:We also can produce based on other international standards, such as IEC,ASTM etc.

Features:

1. Aluminum Conductor with Clad Steel Core – Pure aluminum strands carry the load current, while the core wires combine steel strength and an aluminum outer layer to resist rust.

2. 20kV Voltage Endurance – Designed to withstand the electric field stresses of medium-to-high voltage overhead lines, with tested dielectric performance.

3. 16–800mm² Size Options – From light distribution to heavy feeders, the wide range lets engineers match cable capacity to exact circuit demands.

4. Bare or Insulated Supply – Choose uncoated for traditional pole lines or add a weather-resistant insulation jacket for extra clearance safety.

5. Reduced Lifecycle Cost – The corrosion-proof core eliminates early replacement due to rust, lowering long-term maintenance budgets for utility operators.

Applications:

1. 20kV Primary Distribution – Feeding power from substations to large industrial zones or suburban clusters using bare or insulated overhead cables.

2. Coastal Transmission Sections – Installed along shorelines or across tidal estuaries where ordinary steel core cables would degrade within a few seasons.

3. Forested Right-of-Way Lines – Insulated version allows closer proximity to tree branches without fault risk, simplifying vegetation management.

4. Mountainous Overhead Routes – Long spans between towers benefit from the high tensile rating of the aluminum-clad steel reinforcement.

5. Urban Overhead Corridors – Bare conductor version used in dense city pole networks where visual inspection and compact hardware fit are required.

Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Our Workshop:

Customers Visit:

All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

FAQ:

Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.

Q:Have you ever supplied cables to our country ?

A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
