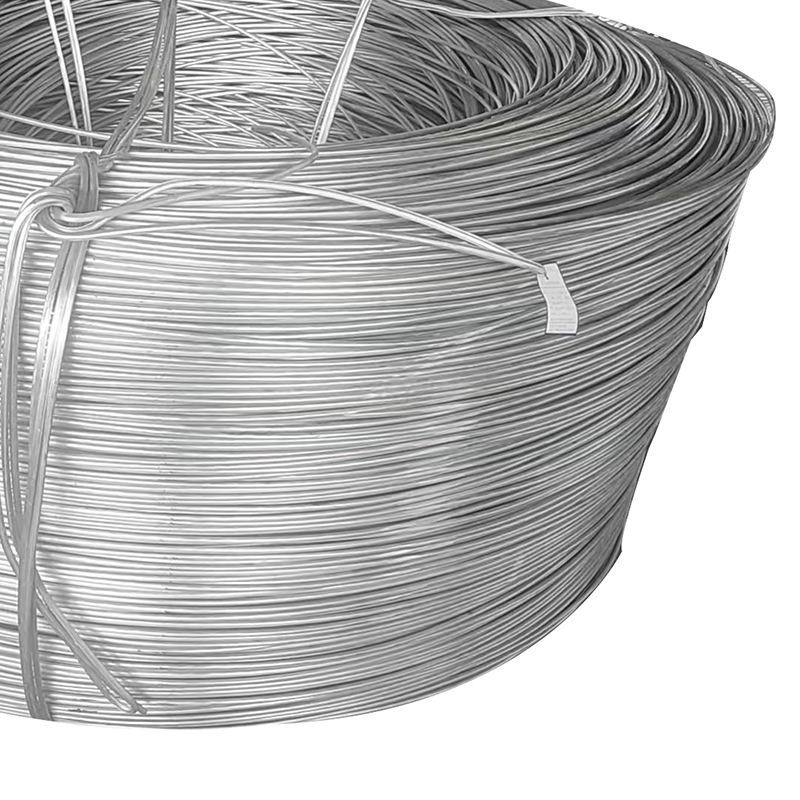

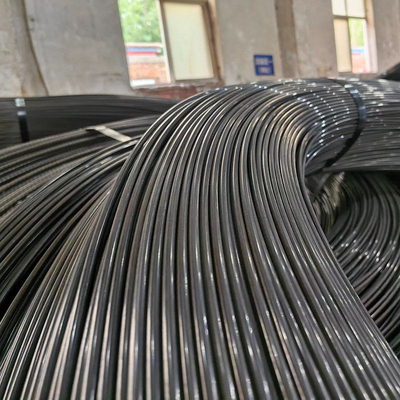

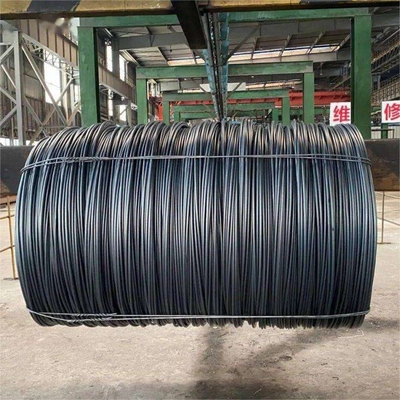

Name: 1050/1060/1100 Grade High Purity 9.5mm Rod Aluminium Wire 5183 4047 Aluminium Wire Rod for Cable
Brand: Luoyang Sanwu Cable Co., Ltd.,
SKU: アルミニウム ワイヤー棒
Price: 1.99 USD
Availability: InStock

ホーム製品アルミニウムワイヤー棒

1050/1060/1100 Grade High Purity 9.5mm Rod Aluminium Wire 5183 4047 Aluminium Wire Rod for Cable

商品の詳細:

起源の場所:	中国洛陽
ブランド名:	Luoyang Sanwu
証明:	IS09001, IS014001,OHSAS18001
モデル番号:	アルミニウムワイヤー棒

お支払配送条件:

最小注文数量:	20トン
価格:	交渉可能
パッケージの詳細:	輸出標準的な木パレット、顧客の要求に従う巻き枠、または
受渡し時間:	7-15作業日
支払条件:	T/T、L/C
供給の能力:	1ヶ月あたりの9000トン

連絡先

詳細製品概要

名前:	アルミニウムワイヤー棒	適用する:	ケーブルとワイヤソリューション
容量:	1日あたりの300tons	直径:	8.0mm.9.5mm、12mm
使用法:	AAC AAAC ACSR
ハイライト:	9.5mm aluminium wire rod , high purity 5183 aluminium wire , 4047 aluminium rod for cable

1050/1060/1100 Grade High Purity 9.5mm Rod Aluminium Wire 5183 4047 Aluminium Wire Rod for Cable

As a leading manufacturer of electrical conductors, we produce premium-grade aluminium wire rods specifically engineered for the cable and wire industry. Our rods are manufactured from high-purity aluminium (EC Grade 1350/1370) with a minimum 99.5% Al content, ensuring exceptional electrical conductivity and mechanical performance. Through continuous casting and rolling processes, we achieve uniform microstructure and precise dimensional tolerances (±0.05mm), making them ideal for drawing into fine wires, stranded conductors, and overhead transmission lines.

Quick Details

Specifications : ASTM B211, AMS 4120, AMS 4339, AMS-QQ-A-225/6, ASTM B221, AMS 4152, AMS 4164, AMS 4165, AMS-QQ-A-200/3

Standard : ASTM, ASME

Surface: Bright, Polish & Black

Aluminium Round Bar: Temper:O, H12, H14, H16, H18, H22, H24, H26, H32, H112

Length :1M-6M,12M & Required Length

Diameter : 6.00 mm to 600.0mm

Grade : 1060,2014,2023,2a12,2024,5083, 5086, 6061,6063,6082,7075,7a04

Product Description

Basic Info.

Model NO.

AY16-5-102

Surface Treatment

Oxidized

Alloy

Non-alloy

Al(Min)

90-99.999%

Yield(≥MPa)

389, 400

Length

as Customers Require

Type

Aluminum Rod

Transport Package

as Your Need

Specification

IEC, ASTM, DIN, BS VDE, GOST, SAS, ISO, CCC, CQC

Trademark

Luoyang Sanwu

Origin

Henan, China

HS Code

76051100

Production Capacity

9000 Ton/Tons Per Month

TABLE 1-Textile Shield for Power Cable for Aluminum Rod

Purity	Chemical Composition%
	AL Minimum	Foreign Content,Maximum
	AL Minimum	Si	Fe	Cu	V+Cr+Mn+Ti	Other
Al99.60E	99.6	0.08	0.20	0.005	0.01	0.3

Type	Tensile Strength,N/mm²	Fracture Toughness%,Min	Electrical Resistance Ωmm²/m 20,Max
A	60-80	25	0.02755
A2	80-110	12	0.02785
A4	95-115	10	0.02801
A6	110-130	8	0.02801
A8	120-150	6	0.02801

TABLE 2- Tensile Property Limits for 1350mm Aluminum Rod

Temper	Tensile Strength
	Ks j	M pa
1350-O	8.5-14.0	59-97
1350-H12 and-H22	12.0-17.0	83-117
1350-H14 and-H24	15.0-20.0	103-138
1350-H16 and-H26	17.0-22.0	117-152

TABLE 3- Electrical Resistivity Limits for Aluninium wire

Temper	Resistivity	Equivalent Volume Conductivity,%
	Max.Ω.mm2/m	IACS Min.
1350-O	0.027899	61.8
1350-H12 and-H22	0.028035	61.5
1350-H14 and-H24	0.028080	61.4
1350-H16 and-H26	0.028126	61.3

Inspection:
To make sure customer receive the good quality goods,100% inspection to be done before delivery.
(1) It is mainly used for drawing the core of wires and cables.
(2) The surface of the rod is clean, smooth and seamless.
(3) Coil weight: large coil 2000kg, small coil: 300--2000kg.

Applications:

Overhead power transmission lines (AAC/AAAC conductors)
Insulated cables (XLPE/PVC) for building wiring
Magnet windings for transformers and motors
Automotive wiring harnesses
Telecommunications cables

Packing & Shipping

Packing Method of 1350 Type,ISO Certificate Aluminum Wire Rod 9.5mm for Wire Drawing:

1.The aluminum rod is usually packed with wooden drum.

2.The aluminum rod will pack according to customer's requirement.

3.Delivery within 7-15 working days after receive your payment.

4.Supply and ship on time.
